WENZHOU JINGHUA MACHINERY CO.,LTD
 |
| Quantity: | |
|---|---|
ZRGF-A
BDTECH
1 set
60 days
Main characteristics
1,supply glue and laminating use double motor,double inverter synchronos adjust speed
2,wind film smoothly,synchronos line speed
3,brige type heat oven,four segment separate constant heating system. (options:add auto rectify in the month of heat oven)

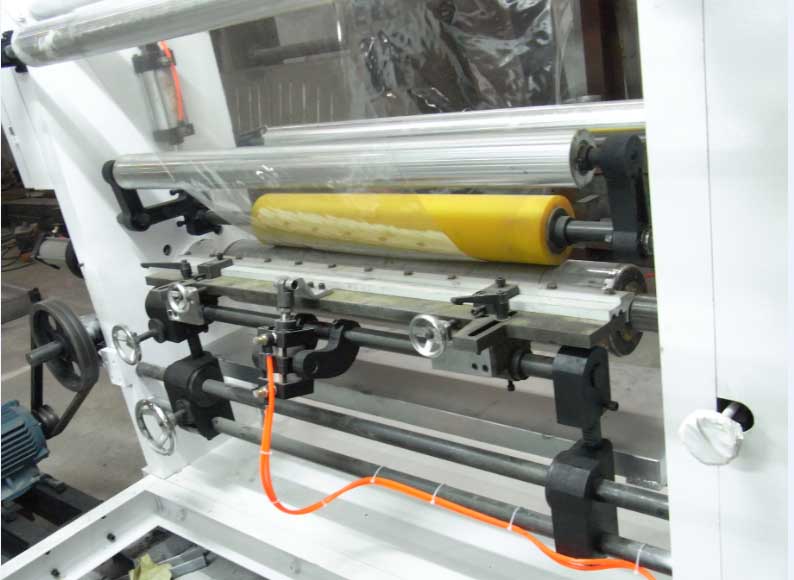

4,supplying glue and laminating use pneumatic type press roller
5,two method to supply glue:blade and squeeze,can choose deponds on productions
6,unwinding and rewinding use powder tension control
7,use segment system can control the temperature in best station
8,first unwinding use auto rectify
9,seconf unwinding use double working station
type | ZRGF-800A | ZRGF-1100A |
useful laminating width | 800mm | 1100mm |
Max width of material | 830mm | 1130mm |
Highest laminating speed | 120m/min | 120m/min |
Highest machinery speed | 150m/min | 150m/min |
Max diameter of unwinding | Φ600mm | Φ600mm |
Max diameter of rewinding | Φ800mm | Φ800mm |
Length of heat oven | 9000mm | 9000mm |
Total power | 80kw | 85kw |
Weight | 7000kg | 7500kg |
Overall dimensions(mm) | 10600×3000×3500 | 10600×3000×3500 |
Warranty : 1 year
1.Installation Services
all of our machine are available of Installation Services. if you need,We can send our engnieer to your factory to help you install your purchased machines from our factory.buyer need to pay for the round trip tickets, food,hotel and pay 80usd/day/person as sallary to our engnieer.
2.Clients Traning Services
it is a big printing machine,We can let our engnieer teach and train your operator hand by hand when our engnieer install the machines in your factory. but that time is not long,maxmum 6 days.if you need experience operator from china. you can let us kown.we can supply the experience operator to you,sallary you and operator discuss face to face.
3.After Sales Service
Our machine guarantee time is one year.
We will send many easy broken spare parts in the tool box together with machines.
If any parts broken ,please take a pictures or a videos to us.
We will help you to change it.
