Availability: | |
---|---|
Quantity: | |
GF800/1100/1300A
TT or LC
90 days

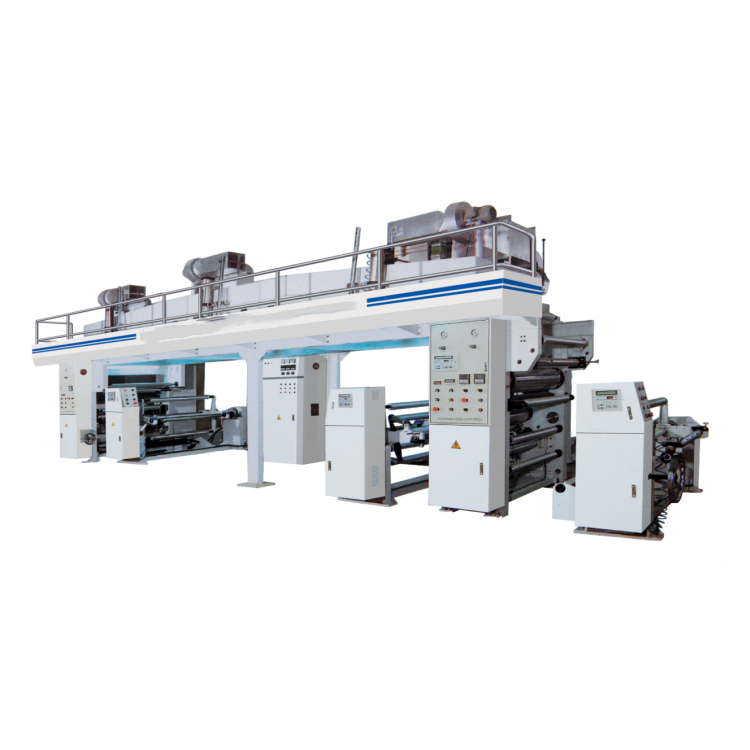

GF800/1100/1300A High Speed Dry Type Laminating Machine
DESCRIPTION:
1.Unwinding and rewinding adopt double-position Gyration
2.The first unwinding and second unwinding with automatic correction function
3.The rewinding can be automatically receiving without stopping
4.Closed loop tension control system for four motors
5.Four sections of oven heating
6.With well glue device after coating
MAIN TECHNICAL PARAMETERS
Model | GF800/1100/1300A |
Laminating Width | 800/1100/1300mm |
Maximum Mechanical Speed | 180M/min |
The Diameter of Unwinding | 600MM |
The Diameter of Rewinding | 800MM |
Overall Dimensions | L11500×W2600/2900/3100×H3500mm |
GF800/1100/1300A High Speed Dry Type Laminating Machine
DESCRIPTION:
1.Unwinding and rewinding adopt double-position Gyration
2.The first unwinding and second unwinding with automatic correction function
3.The rewinding can be automatically receiving without stopping
4.Closed loop tension control system for four motors
5.Four sections of oven heating
6.With well glue device after coating
MAIN TECHNICAL PARAMETERS
Model | GF800/1100/1300A |
Laminating Width | 800/1100/1300mm |
Maximum Mechanical Speed | 180M/min |
The Diameter of Unwinding | 600MM |
The Diameter of Rewinding | 800MM |
Overall Dimensions | L11500×W2600/2900/3100×H3500mm |
