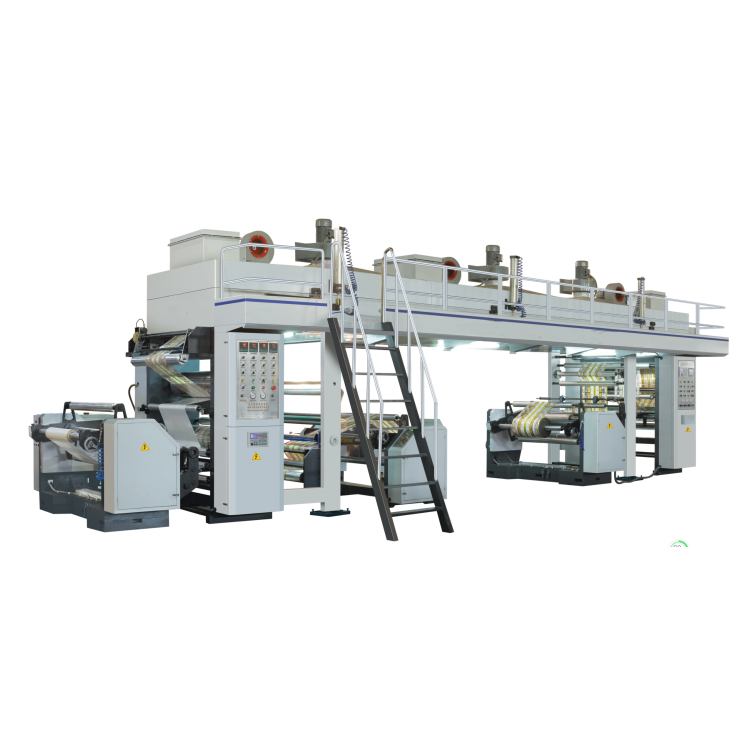

GF800/1100/1300B High Speed Dry Type Laminating Machine

loading

Share to:
sharethis sharing button
Availability:
Quantity:
  • GF800/1100/1300B

  • TT or LC

  • 90 days

GF800/1100/1300B High Speed Dry Type Laminating Machine


DESCRIPTION:

1.Unwinding and rewinding adopt double-position Gyration

2.The first unwinding and second unwinding with automatic correction function

3.The rewinding can be automatically receiving without stopping

4.Closed loop tension control system for eight (or nine) motors

5.Four sections of oven heating

6.With well glue device after coating


MAIN TECHNICAL PARAMETERS

Model

GF800/1100/1300B

Laminating Width

800/1100/1300mm

Maximum Mechanical Speed

220M/min

The Diameter of Unwinding

600MM

The Diameter of  Rewinding

800MM

Overall Dimensions

L11500×W3000/3300/3500×H3300mm
