WENZHOU JINGHUA MACHINERY CO.,LTD
 |
| Quantity: | |
|---|---|
ZRAY-E
BDTECH
1 set
90 days
Profile:

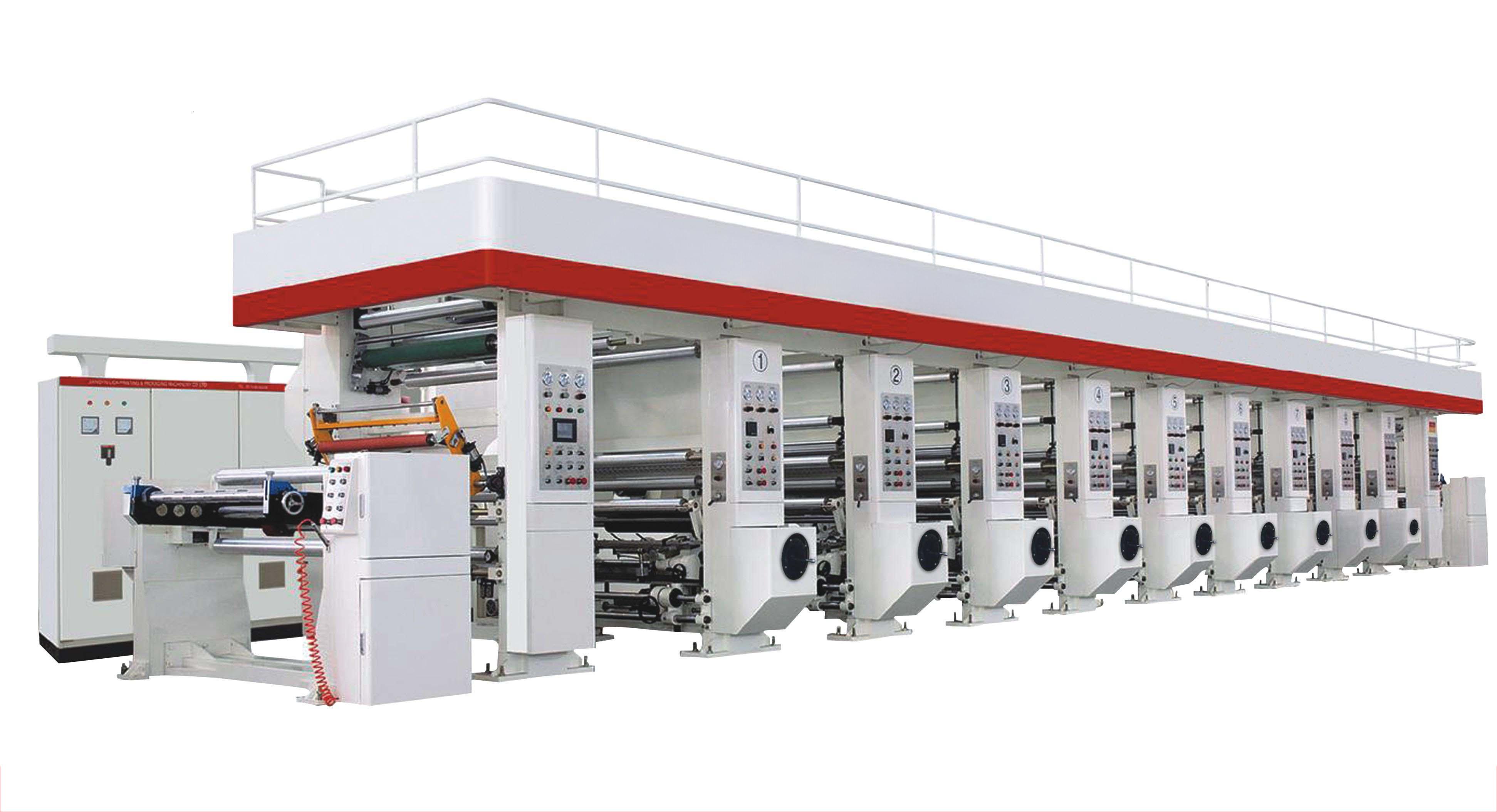

This is our new generation high speed computer auto register printing machine.
It is suitable for film BOPP/PET/PVC/PE,paper(30-150gsm) etc roll assortments of material.
Widely use in advantage printing field.
It have reasonable design, good quanlity, imported brand main electricity system. High automatic, credibility capability, exactly register, high yield, it is the advanced high speed gravure printing device in domestic.
Main characteristics:
1,Separately,no-connect color station
2,Auto receiving and cutting in unwinding and rewinding without stopping
3,Four float roll and seven-motor synchronous control in closed loop
4,Water-cooling roll cooling system
5,Drived by immersed-oil type pressurize gear case
6,Pneumatic double-shaft blade, activity:6mm
7,Exact double leadscrews and pre-register structure
8,Out separate heat system
9,Shaftless, embossing rubber roller point-up and cylinder autolock function
10,Imported float roll tension cylinder and value (Tengcang of Japan)
11,International brand motor ABB and vector frequency converter
12,Achieve up-down and fast register, high yield
13,High static picture and accuracy register system
14,Operate man-machine in text
15,Luxury and manerly appearance design
Note: can extra equip horizontal color register structure, obverse and inverse print structure,electronic transmmission structure,deponds on client's requirement.
Type | ZRAY-8800E | ZRAY-81000E | ZRAY-81200E |
Effective Printing Width | 800mm | 1000mm | 1200mm |
Max.Web Width | 830mm | 1030mm | 1230mm |
Max.Printing Speed | 220m/min | 220m/min | 220m/min |
Max Mechanical Speed | 240m/min | 240m/min | 240m/min |
Max.Diameter Material Roll | Φ600mm | Φ600mm | Φ600mm |
Internal Diameter of Roll Core | Φ76mm | Φ76mm | Φ76mm |
Diameter of Printing Cylinder | Φ100~Φ350mm | Φ100~Φ350mm | Φ100~Φ350mm |
Accuracy of Computer Registration | ±0.1mm | ±0.1mm | ±0.1mm |
| Total Power | 250kw | 280kw | 320kw |
Weight Mchine | 32000kg | 38000kg | 42000kg |
Overall Dimension(L×W×H) | 18500×3500×3500mm | 18500×3800×3500mm | 18500×4200×3500mm |
seven motor system:
automatic splicing system in unwinder and rewinder：
machine final production picture:
Warranty : 1 year
1.Installation Services
all of our machine are available of Installation Services. if you need,We can send our engnieer to your factory to help you install your purchased machines from our factory.buyer need to pay for the round trip tickets, food,hotel and pay 80usd/day/person as sallary to our engnieer.
2.Clients Traning Services
it is a big printing machine,We can let our engnieer teach and train your operator hand by hand when our engnieer install the machines in your factory. but that time is not long,maxmum 6 days.if you need experience operator from china. you can let us kown.we can supply the experience operator to you,sallary you and operator discuss face to face.
3.After Sales Service
Our machine guarantee time is one year.
We will send many easy broken spare parts in the tool box together with machines.
If any parts broken ,please take a pictures or a videos to us.
We will help you to change it.
