WENZHOU JINGHUA MACHINERY CO.,LTD
 |
| Quantity: | |
|---|---|
WFQ 1000/1300
BDTECH
1SET
45 days
Profile:

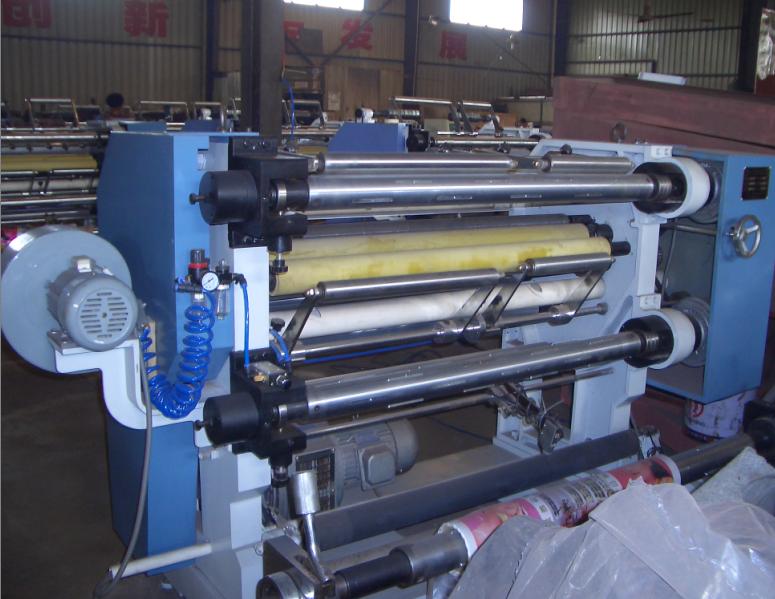

This machine is suitable for slitting various plastic film,glassine,paper ,laminated film etc roll material,cutting the big roll to smaller roll.it is used in microcomputer control,phtotoelectric automatic correcting deviation,automatic counting,tension magnetic powder control to wind and rewind as well as manual micro-adjustment etc.
Main characteristics:
| TYPE | WFQ1000 | WFQ1300 |
| Max width of material | 1000mm | 1300mm |
| Max diameter of unwinding | Φ600mm | Φ600mm |
| Max diameter of rewinding | Φ400mm | Φ400mm |
| Scope of slitting | 20-1000mm | 20-1300mm |
| Tension control | 0-50N.m | 0-50N.m |
| Sltting speed | 50-160m/min | 50-160m/min |
| Rectify precision | ±0.2mm | ±0.2mm |
| Total power | 4.5kw | 4.5kw |
| Overall demensions | 1200 x 2280 x 1400mm | 1200 x 2580 x 1400mm |
| Weight | 1500kg | 2000kg |
Warranty : 1 year
1.Installation Services
All of our machine are available of Installation Services. if you need,We can send our engnieer to your factory to help you install your purchased machines from our factory.buyer need to pay for the round trip tickets, food,hotel and pay 80usd/day/person as sallary to our engnieer.
2.Clients Traning Services
We can let our engnieer teach and train your operator hand by hand when our engnieer install the machines in your factory. but that time is not long,maxmum 6 days.if you need experience operator from china. you can let us kown.we can supply the experience operator to you,sallary you and operator discuss face to face.
3.After Sales Service
Our machine guarantee time is one year.
We will send many easy broken spare parts in the tool box together with machines.
If any parts broken ,please take a pictures or a videos to us.
We will help you to change it.
