WENZHOU JINGHUA MACHINERY CO.,LTD
 |
| Quantity: | |
|---|---|

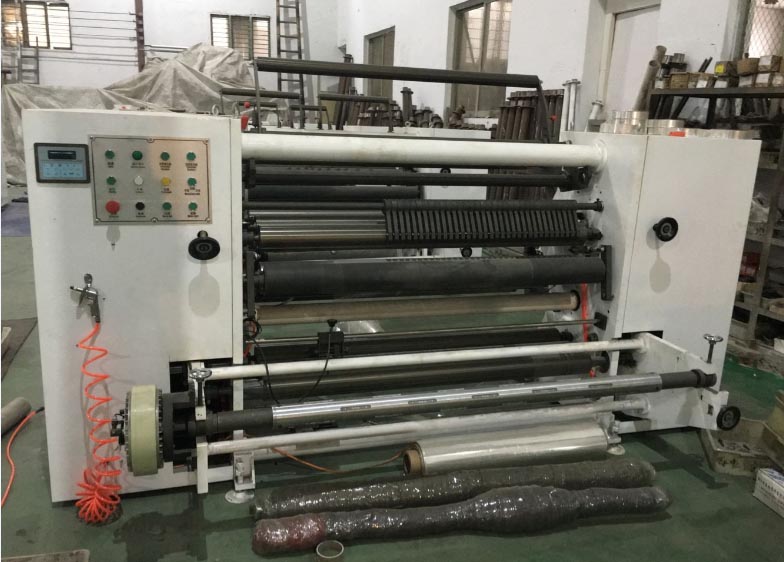

ZRFT1300
BDTECH
TT
Main characteristics :
1,unwinding is connecting with machine(option: separate unwinder shelf), adopts move type arm type
and hang move type.
2,unwinding use 3inch shaft type loading material.
3,unwinding use 10kg powder brake, PLC control.
4,web guide EPC,photocell eye track
5,traction use pneumatic press roll traction system.use japan YASKAWA inverter.
6,slitting use doctor blade and rotary blade. 5 sets
7,exhaust system use 1.1kw high press fan
8,rewinding use two airshaft,tension controlled by PLC.
9,rewinding use 10kg powder cluth,control by PLC
11,use Siemens PLC and WEVIEW man-machine interface.
12,low voltage electronic parts use CHNT.
13,bear use HAERBIN.
TYPE | ZR-FT1300 |
Max width of material | 1300mm |
Max diameter of unwinding | Φ800mm |
Max diameter of rewinding | Φ600mm |
Slitting width scope | 30-1300mm |
Machinery speed | 230m/min |
Slitting speed | 200m/min |
Rectify precision | ±0.3mm |
Total power | 10kw |
Overall demensions | 2500*2000*1500mm |
weight | 1800kg |
Warranty : 1 year
1.Installation Services
all of our machine are available of Installation Services. if you need,We can send our engnieer to your factory to help you install your purchased machines from our factory.buyer need to pay for the round trip tickets, food,hotel and pay 80usd/day/person as sallary to our engnieer.
2.Clients Traning Services
it is a big printing machine,We can let our engnieer teach and train your operator hand by hand when our engnieer install the machines in your factory. but that time is not long,maxmum 6 days.if you need experience operator from china. you can let us kown.we can supply the experience operator to you,sallary you and operator discuss face to face.
3.After Sales Service
Our machine guarantee time is one year.
We will send many easy broken spare parts in the tool box together with machines.
If any parts broken ,please take a pictures or a videos to us.
We will help you to change it.
