WENZHOU JINGHUA MACHINERY CO.,LTD
 |
| Quantity: | |
|---|---|
ZM-320
BDTECH
1SET
45 days
Profile:

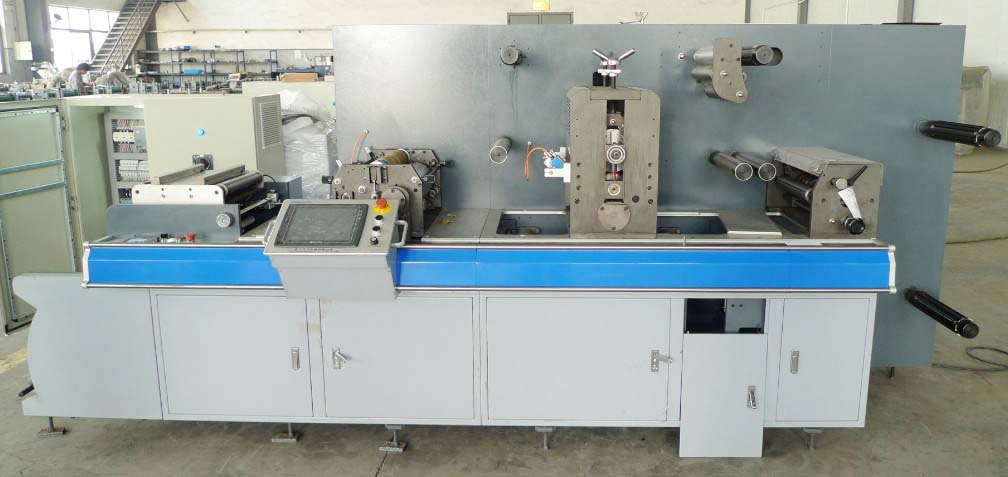

ZM-320 rotary/semi-rotary label die-cutting machine is new developed converting machine equips with inline slitter. This machine adopts latest Rexrtoh-Bosch (Germany) servo and control system, include: unwinder, web-guider, lamination, register die-cutter, slitter and rewinder.
Main characteristics :
1,The register die-cutting system is our patent product; it can be full rotary or semi-rotary die-cutter according to the production requirement. When semi-rotary die-cutter, the tension among unwinder, web-guider and rewinder will be the same (different from traditional intermittent type), the material will not run away during the die-cut.semi-rotary die-cutting unit adopts one big magnetic cylinder, if you have different applications, the only job is to change the flexible die.
2,has the characteristic of fast speed, super accurate, easy operation, high efficiency and less cost. It’s good for all kind of label die-cutting jobs, include shrot run to long run.
If the job is large quantity, then you can change the magnetic roller acccordingly, it will highly increase the die-cutting quality and output.
3,rotary/semi-rotary label die-cutting machine committee to make the maximum profit for you.
It’s the ideal converting machine for the printing house.
| Machine model | ZM-320 |
| Max. Die-cutting speed (rotary) | 120m/min |
| Max.Die-cutting speed (Semi-rotary) | 65m/min |
| Die-cutting length (rotary) | 190.5-539.75mm |
| Die-cutting length (Semi-rotary) | 100-350mm |
| Max .Die-cutting width | 300mm |
| Max web width | 320mm |
| Max. Unwinder/ Rewinder Dia. | 600mm |
| Die-cutting accuracy | ±0.1mm |
| Slitting width | ≥20mm |
| Power supply | 380V, 50Hz, 3P |
Warranty : 1 year
1.Installation Services
all of our machine are available of Installation Services. if you need,We can send our engnieer to your factory to help you install your purchased machines from our factory.buyer need to pay for the round trip tickets, food,hotel and pay 80usd/day/person as sallary to our engnieer.
2.Clients Traning Services
it is a big printing machine,We can let our engnieer teach and train your operator hand by hand when our engnieer install the machines in your factory. but that time is not long,maxmum 6 days.if you need experience operator from china. you can let us kown.we can supply the experience operator to you,sallary you and operator discuss face to face.
3.After Sales Service
Our machine guarantee time is one year.
We will send many easy broken spare parts in the tool box together with machines.
If any parts broken ,please take a pictures or a videos to us.
We will help you to change it.
-
