WENZHOU JINGHUA MACHINERY CO.,LTD
 |
| Quantity: | |
|---|---|
ZFD400
BDTECH
1 set
30 days
Profile:
this middle sealing bottom sealing machine is suitable for laminated film,make the ice cream bag,other fruit package bag ,coffee bag. first middle sealing,then bottom sealing,then cut to each bag. make the bags successive, one-step forming.save electricity power,reduce worker quantity,high speed.easy to operate.
main characteristic:
1,use micro-computer control
2,use inverter adjust speed
3,double step motor control the setting length
4,intelligent temperature control
5,photocell track and set the position
6,feeding material system have compensate structure
7,middle sealing use flat press structure,let the middle sealing more fasten
8,two pcs bottom sealing, sealing more fasten
9,machine with gusset structure
| Type | ZFD400 |
| Scope of bag making width | 30-400mm |
| Bag making speed | 160pcs /min |
| Total power | 4.2kw |
| Power source | Singal phase 220v/ 3 phase 380v |
| Weight of machine | 1350kg |
| Overall dimensions(L×W×H) | 5880mm×1280mm×1200mm |

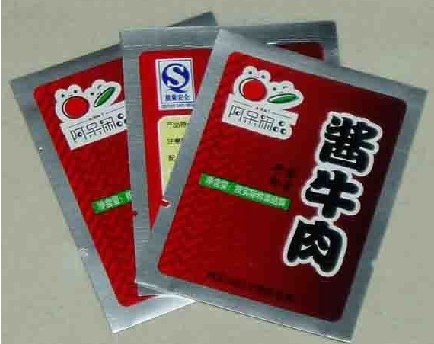

can make the belowing productions on one machine,instead of two machines:
Warranty : 1 year
1.Installation Services
all of our machine are available of Installation Services. if you need,We can send our engnieer to your factory to help you install your purchased machines from our factory.buyer need to pay for the round trip tickets, food,hotel and pay 80usd/day/person as sallary to our engnieer.
2.Clients Traning Services
it is a big printing machine,We can let our engnieer teach and train your operator hand by hand when our engnieer install the machines in your factory. but that time is not long,maxmum 6 days.if you need experience operator from china. you can let us kown.we can supply the experience operator to you,sallary you and operator discuss face to face.
3.After Sales Service
Our machine guarantee time is one year.
We will send many easy broken spare parts in the tool box together with machines.
If any parts broken ,please take a pictures or a videos to us.
We will help you to change it.
