What is a Gravure Printing Machine and How Does It Work

A gravure printing machine is also called rotogravure. It lets you print things quickly and with good quality. You use it to print on soft materials like plastic films and foils. Many companies pick this method because it makes packages and magazines look bright and clear. You can see its work in things like snack wrappers and shiny catalogs. > If you want pictures with lots of detail and strong colors, gravure printing is a great option.

Key Takeaways

• Gravure printing, called rotogravure, gives clear prints with bright colors and sharp lines. It is great for packaging and magazines.

• This printing method is good for making many items. The cost for each item goes down when you print more. This helps businesses save money.

• Gravure printing works on different materials like plastic films and foils. This makes it useful for many industries.

• New gravure technology uses digital controls and automation. These changes make printing faster. They also use less ink and keep colors the same.

• Businesses that want reliable and detailed printing should choose gravure. It is a smart choice for projects needing good visuals and lots of items.

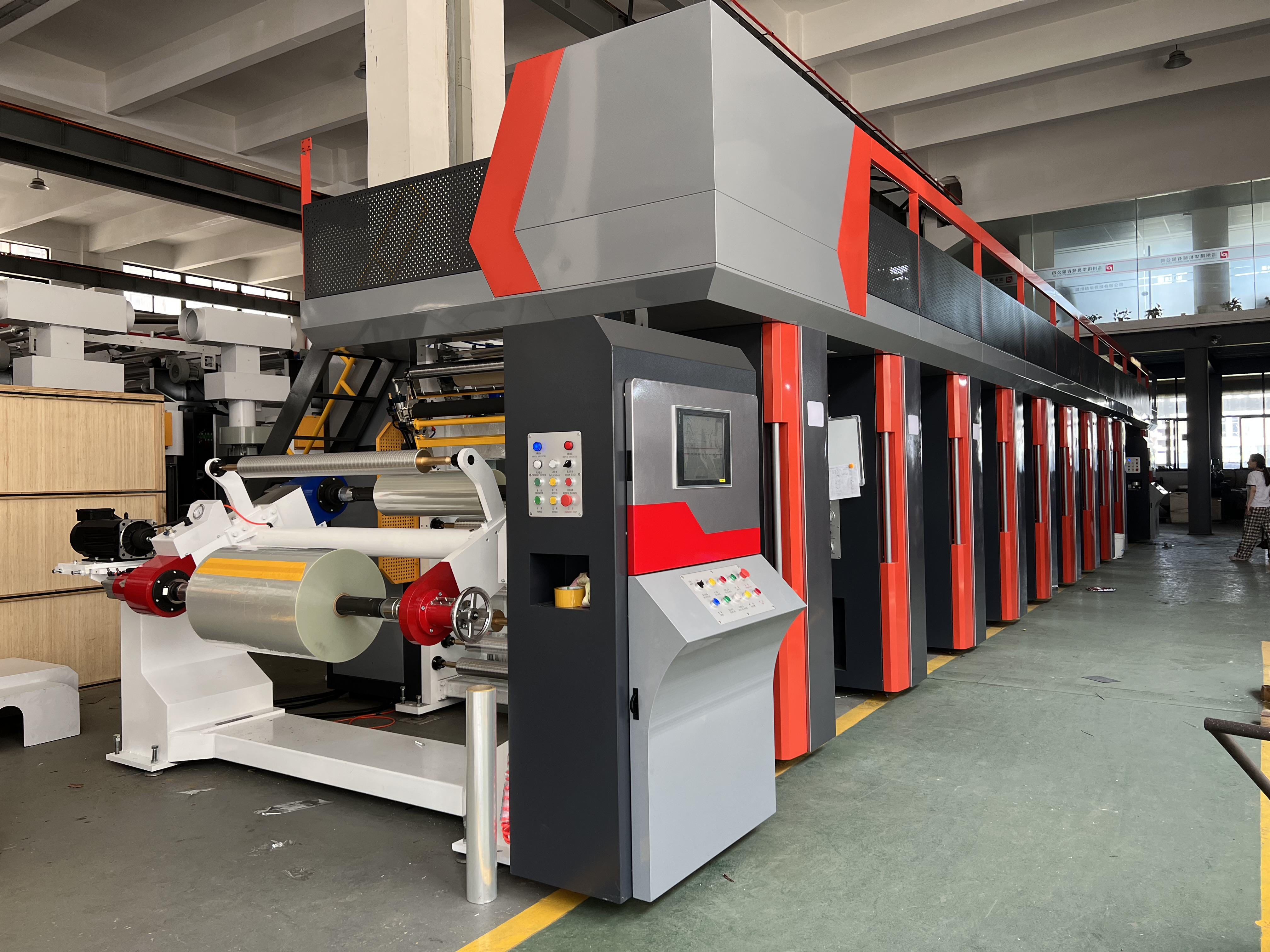

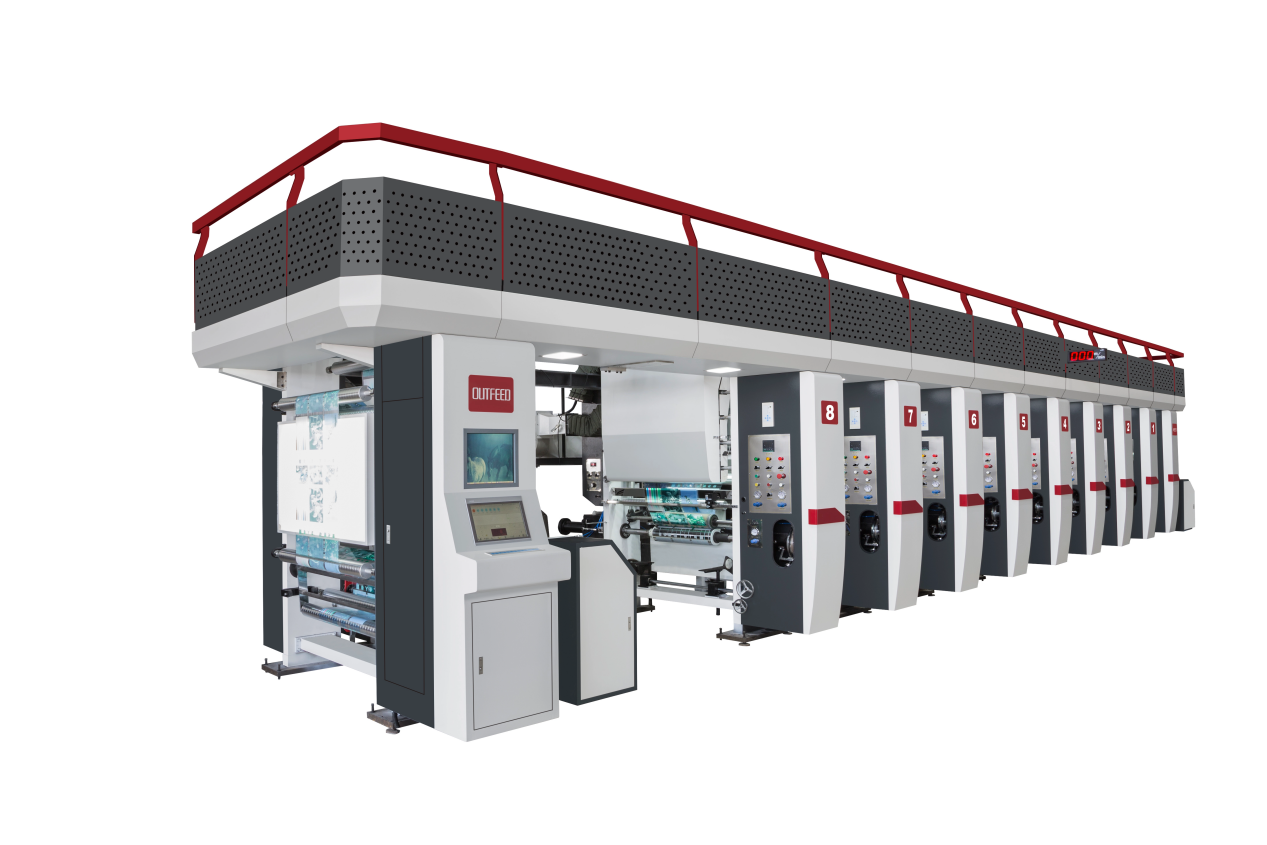

Gravure Printing Machine Overview

Image Source: pexels

What Is Gravure Printing

Gravure printing helps you make clear, colorful pictures on many materials. The gravure printing machine is also called rotogravure. It uses a metal cylinder with tiny cells on it. Each cell holds ink for printing. The cylinder spins and puts ink onto the material. This makes prints with bright colors and sharp details.

Gravure printing is different from other methods for a few reasons:

• You get strong colors because the machine uses special steel plates.

• You can print lots of items fast, so it is good for big jobs.

• Printing more lowers the cost per item, even if setup costs more.

• Digital printing is better for small jobs, but gravure printing is best for big runs.

You see gravure printing on snack wrappers, magazines, and shiny packages. It works well when you need to print the same picture many times with bright colors and clear details.

Rotogravure and Its Uses

Rotogravure printing is another name for gravure printing. You use it to print on soft materials like plastic films, foils, and laminated sheets. The machine can handle long rolls of these materials. This makes it great for roll-to-roll production.

Gravure printing is used in many industries. Here is a table that shows where you might see it:

Gravure printing is important for packaging. Companies use it for food wrappers, medicine packs, and labels. You also see it in magazines and catalogs because it prints clear pictures and words.

Common Materials and Applications

You can use a gravure printing machine to print on many materials. Each material has its own use. Here is a table that shows some common materials and what you can do with them:

Gravure printing is good for printing on these materials. It gives you strong colors and clear images. The machine can print on thin films and foils without hurting them. You get packaging that looks nice and keeps the product safe.

Tip: If you want to print lots of packages or magazines with bright, clear pictures, gravure printing is a smart choice. The machine helps you save money on big jobs and gives you great results every time.

How Gravure Printing Machines Work

Knowing how a gravure printing machine works shows why it is used for packaging and magazines. The process uses special steps to make detailed pictures and bright colors. You can follow each stage to see how the machine turns an idea into a finished print.

Engraving and Cylinder Preparation

The first step is getting the cylinder ready. This part holds the picture you want to print. You start with a smooth copper cylinder. The image is engraved onto the surface using careful steps. Here is how the engraving process goes:

1. Make a film positive from the original photo negative.

2. Soak a sheet of pigmented gelatin tissue in potassium dichromate solution.

3. Use ultraviolet (UV) light to expose the film positive to the sensitized gravure tissue.

4. Attach the exposed tissue to the copper plate under cool water.

5. Use hot water to remove the paper backing and wash away any unexposed gelatin.

6. Etch the plate in ferric chloride baths to form tiny cells that hold ink.

7. Clean the plate and get it ready for printing.

Each cell on the cylinder holds a little ink. The size and depth of these cells control how much ink goes onto the material. This step is important because it decides the quality and detail of the final print.

Printing Process Steps

After the cylinder is ready, you can start printing. The gravure printing machine uses a roll-to-roll system. This means the material moves through the machine in long rolls. It helps you print fast and efficiently. Here is what happens during printing:

1. The engraved cylinder spins in a bath of liquid ink.

2. The cells fill with ink as the cylinder turns.

3. A doctor blade scrapes off extra ink, leaving ink only in the engraved cells.

4. The substrate, like plastic film or foil, presses against the cylinder.

5. The ink moves from the cells to the substrate when they touch.

6. The printed material goes through a drying unit to set the ink.

7. The finished roll rewinds at the end of the machine.

Note: The roll-to-roll process lets you print thousands of meters without stopping. This method is great for big jobs that need the same picture printed many times.

Ink Transfer and Substrate Handling

The gravure process is special because it transfers ink well. You get strong, even colors with every print. The table below shows how gravure compares to other printing methods:

You can see gravure gives the best color and speed, especially for big jobs. The gravure printing machine uses a tension control system to handle the substrate. This system keeps the material tight and smooth as it moves through the machine. When you keep the right tension, you avoid problems like wrinkles or misalignment. This control helps you get sharp, clear prints and reduces waste.

Tip: If you want to print on thin films or foils, gravure is a smart choice. The machine’s tension control and precise ink transfer give you reliable results every time.

The gravure printing process uses careful steps, from cylinder engraving to ink transfer and substrate handling. Each part of the process helps you get detailed, colorful prints on many types of materials.

Gravure Printing Machine Components

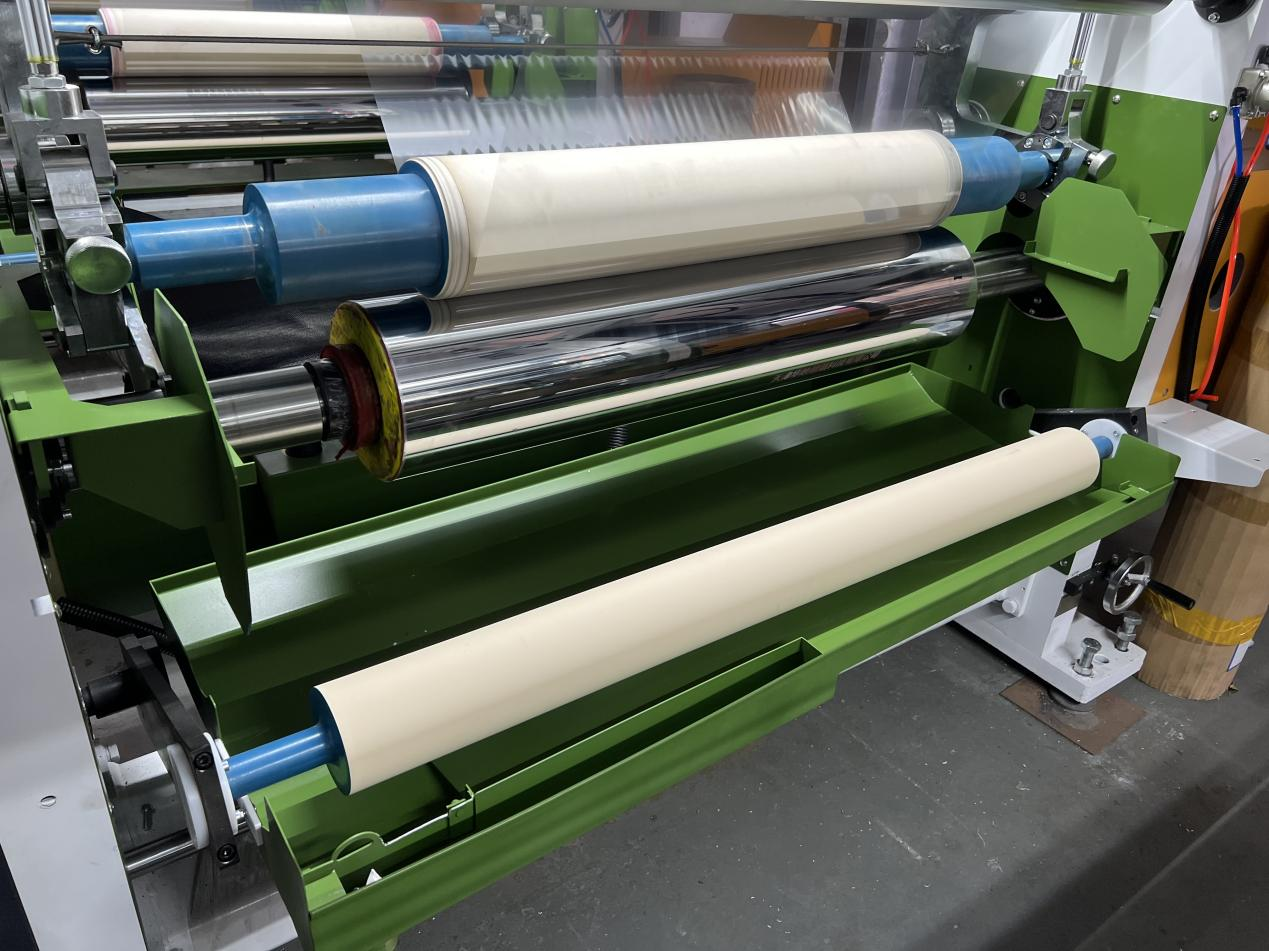

Engraved Cylinder

The engraved cylinder is the main part of the gravure printing machine. It holds the picture you want to print. Workers carve tiny cells into the cylinder’s surface. Each cell keeps a little ink inside. The size and depth of these cells decide how much ink goes onto your material. Gravure printing gives sharp pictures and bright colors because the cylinder spreads ink evenly. Operators must set up and adjust the cylinder with care to keep prints looking good. If you do not clean or take care of the cylinder, you might see faded spots or messy ink on your prints.

Ink System and Doctor Blade

The ink system uses liquid inks in gravure printing. The cylinder turns in an ink bath and fills the cells with ink. A doctor blade wipes off extra ink from the cylinder’s surface. Only the ink inside the cells stays for printing. This step helps you get neat and clear prints. You must keep the doctor blade sharp and clean. If you do not, you might see lines or uneven colors. Operators spend time cleaning and fixing the ink system to stop problems. Here are some common challenges:

• Long changeover times can make print quality uneven.

• Uneven quality may cause faded spots or messy ink.

• Unplanned stops happen if cleaning cannot keep up.

Drying and Rewind Units

After the ink goes onto your material, the drying unit removes wetness or solvent. Fast and even drying stops smudges and mistakes. Many gravure machines use heat recovery systems to save energy. These systems help lower energy use and keep production running well. You can see how drying features work in the table below:

When the ink dries, the rewind unit rolls up the finished material. Good tension control in the rewind unit keeps prints smooth and stops wrinkles. Each part of the gravure printing machine must work together to get the best results.

Gravure Printing Machine Technology

Digitalization and Automation

You can see big changes in gravure printing today. Digital controls help you set up jobs much faster. Modern systems let you cut setup time by up to 70%. You also use less ink because new machines reduce ink waste by 50%. Some machines even lower the ink volume in the circuit by more than half. You can repeat jobs with 100% accuracy, so every print looks the same. With these upgrades, you can run profitable jobs for as little as 5,000 square meters.

Automation makes your work easier. For example, oneSET reads your order files and sets up the gravure printing machine for you. This system speeds up production and saves energy. You do not need to spend hours on manual adjustments. You get more prints done in less time.

Color Control and Quality

Color matters in gravure printing. You want every package or magazine to look bright and match the original design. New technology helps you keep colors stable. The onePRINT system uses a closed-loop process to check and adjust color as you print. This means you get the same color on every copy. You waste less ink because the system only uses what you need. You also avoid mistakes that can ruin a whole batch.

You can trust gravure to give you sharp images and strong colors. The machine checks each print and fixes problems right away. You get high quality without extra effort.

Gravure Offset Printers

Gravure offset printers bring more options to your shop. These machines mix gravure and offset printing. You get the deep colors of gravure and the fine detail of offset. This combo works well for special jobs that need both quality and speed.

You can use gravure offset printers for short runs or custom prints. They help you save money and time. You do not need to change the whole setup for every job. You get flexibility and top results with less waste.

Tip: If you want to keep up with new trends, look for machines with digital controls and automation. These features help you print faster, save ink, and keep colors perfect.

Benefits of Gravure Printing

High Print Quality

Gravure printing gives you good print quality every time. The engraved cylinder helps make sharp pictures and strong colors. You get smooth color changes and clear details, even on thin films or foils. Gravure is great for packaging and shiny magazines that need to look nice. The print stays the same from start to finish, which is important for big jobs. If you want your products to look bright and professional, gravure is a smart choice.

Efficiency for Long Runs

Gravure is best for printing lots of items fast. You can print thousands or millions without stopping. Here is why gravure works well for big jobs:

• Gravure printing is fast, so you finish big jobs quickly.

• The price for each item gets lower when you print more.

• Gravure costs less than flexographic printing for big, repeat jobs.

You save time and money with gravure for large projects. This makes it popular in industries that print the same design many times.

Versatility and Cost Savings

Gravure printing works on many kinds of packaging and products. You can use it on plastic films, foils, and laminated materials. You also pay less when you print in bulk. The table below shows how the price per item drops as you order more:

Gravure helps you save money on big jobs. New trends like automation and digital controls make the process even faster. The table below shows some reasons why companies use gravure for packaging:

Note: Some new printing methods, like Cyrel® FAST, use less energy and make less pollution than old gravure. These changes help the planet and support green production.

You can trust gravure to give you flexibility, save money, and get good results for many types of commercial printing.

You have learned how a gravure printing machine works. Each part helps make prints look sharp and colorful. The engraved cylinder and drying unit are important. This technology gives fast and good results. It works well for packaging and magazines. You can trust it for big jobs that need clear prints. If you want reliable and detailed printing, this method is a smart choice for your business.

FAQ

What is the main advantage of gravure printing?

You get high-quality prints with bright colors and sharp details. Gravure printing works well for large jobs. You can trust it for packaging, magazines, and labels.

Can you use gravure printing for short runs?

Gravure printing works best for long runs. The setup costs are high. For small jobs, you may want to try digital or flexographic printing.

What materials can you print on with a gravure machine?

You can print on plastic films, foils, laminated sheets, and even paper. The machine handles thin and flexible materials without damage.

How do you keep colors consistent in gravure printing?

Modern gravure machines use color control systems. These systems check and adjust colors as you print. You get the same color on every copy.
