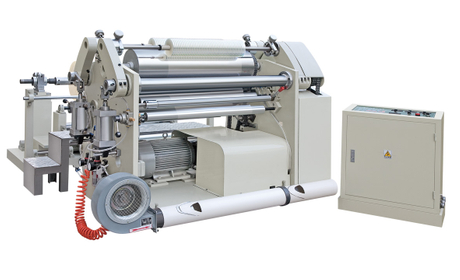

QFJ500-1000 surface loading slitting machine
Product Description
Profile:

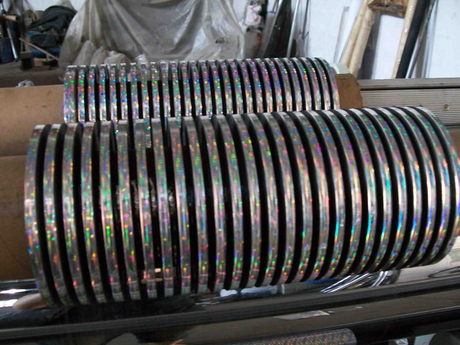

This is a perfect and ideal machine suitable for slitting small scale materials ,such as rollers of plastic gluefilm, aluminum foil, PVC, plastic film, insulation material .minmum slitting width is 5mm.
Main characterisetics:
1, high speed,high precision slitting
2, have the meter preset,auto stop functions.
3,unwinding A/B shaft and rewinding shaft are all airshaft
4,two units of magnetic powder clutch on rewinding,control (barometric pressure) the central volume reeling and with contact the surface, the two axle inter rewinding, never nips the mouth
5,unwinding use photocell rectify system
6,minmum slitting width 5mm
| Max.width of materia | 600mm |
| Max.diameter of material | φ600mm |
| Speed of machine | 160m/min |
| Rewind Diameter | φ420mm |
| Minimum width | 6-600mm |
| Precision | ±0.3mm |
| Total power | 6.5kw |
Warranty : 1 year
1.Installation Services
all of our machine are available of Installation Services. if you need,We can send our engnieer to your factory to help you install your purchased machines from our factory.buyer need to pay for the round trip tickets, food,hotel and pay 80usd/day/person as sallary to our engnieer.
2.Clients Traning Services
it is a big printing machine,We can let our engnieer teach and train your operator hand by hand when our engnieer install the machines in your factory. but that time is not long,maxmum 6 days.if you need experience operator from china. you can let us kown.we can supply the experience operator to you,sallary you and operator discuss face to face.
3.After Sales Service
Our machine guarantee time is one year.
We will send many easy broken spare parts in the tool box together with machines.
If any parts broken ,please take a pictures or a videos to us.
We will help you to change it.
